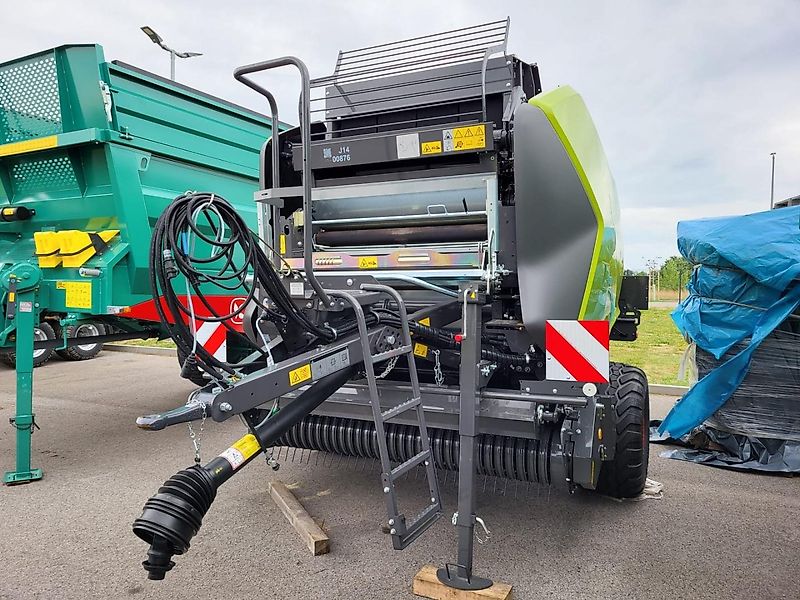

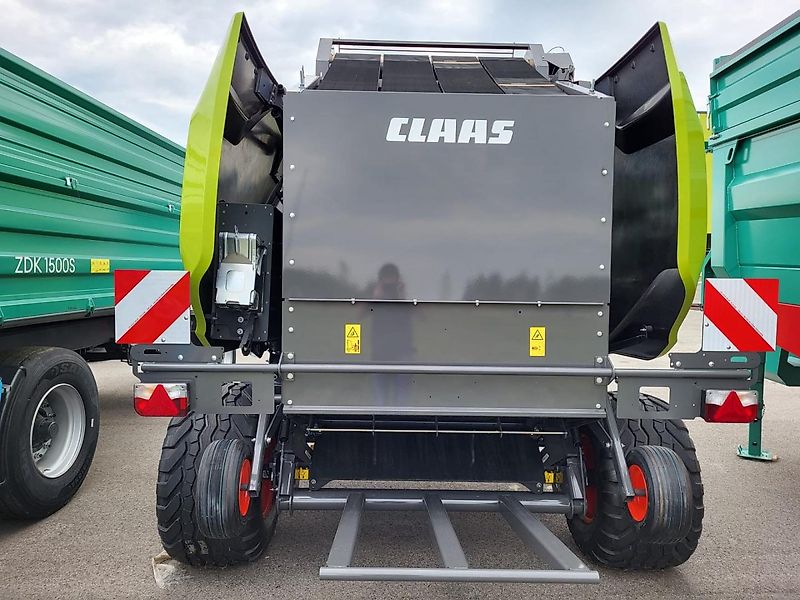

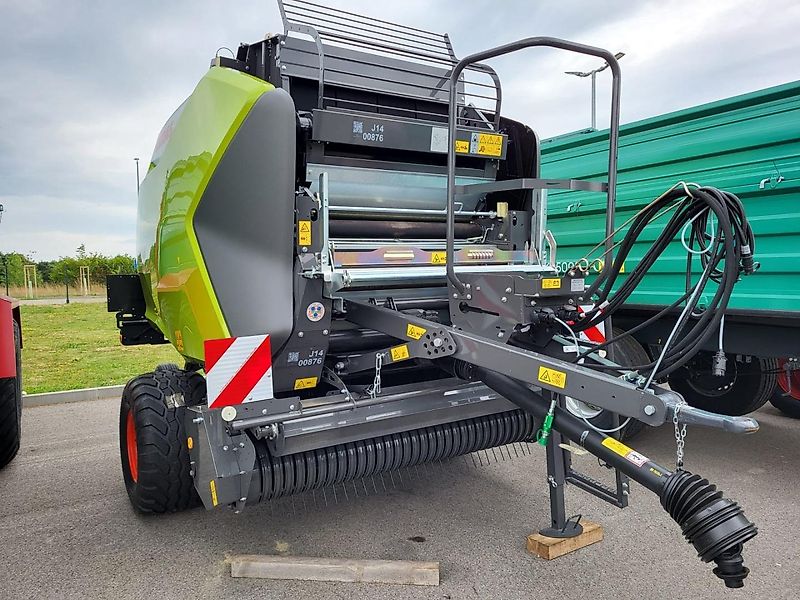

Claas VARIANT 560 RC

Dodatno:

Dodatni opisi

Variable round baler with 0.90 – 1.60 m bale chamber diameter
Bale chamber width 1.20 m
Hydraulics requirements:
Basic machine 1 x sa and 1 x da
With PRO cutting frame 1 x da in addition

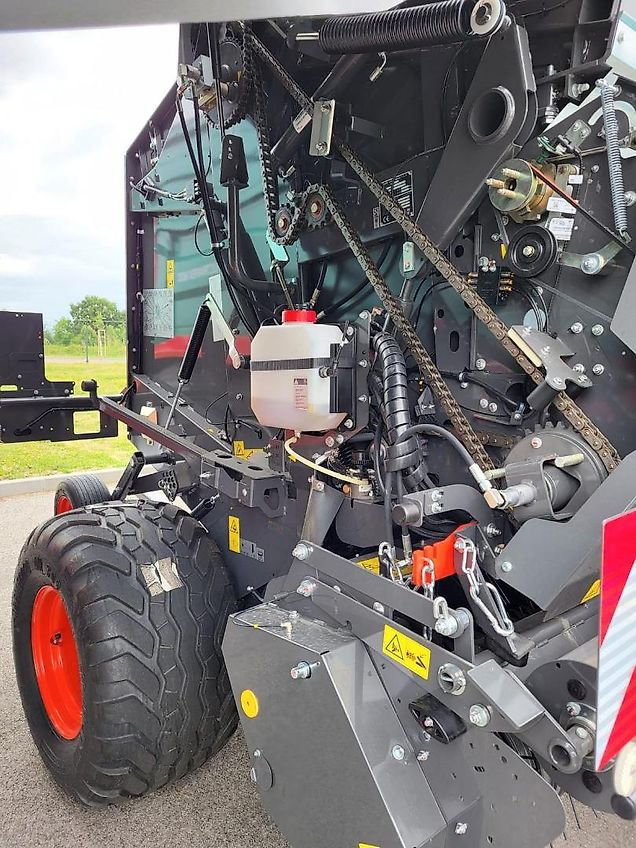

Constant chain lubrication
Dual tensioning arm system
SMART DENSITY baling pressure control

Crop Flow:

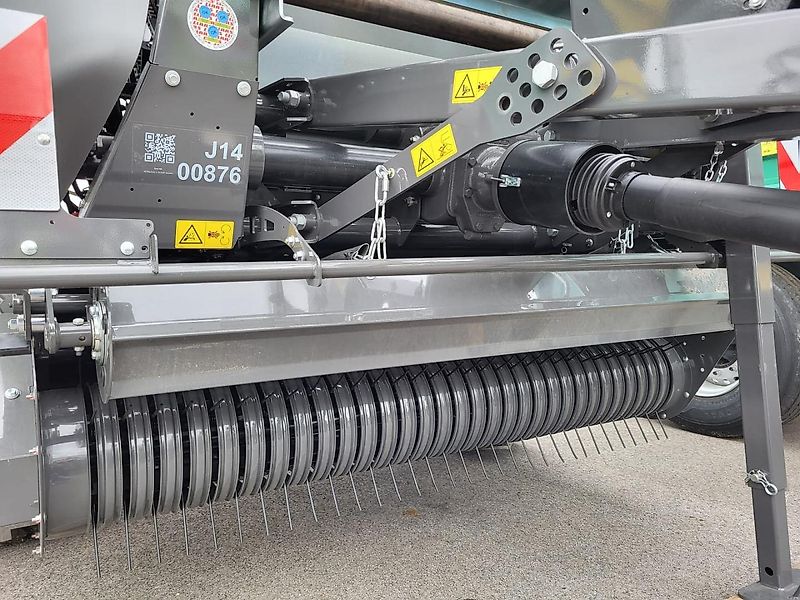

Pick-up with roller crop press, pick-up width 2.10 m
4 rows of tines, cam track controlled
Pick-up castor guide wheels, fixed
Pick-up guide wheels with 16x6.5-8 tyres
Cross augers on both sides
ROTO CUT cutting rotor with hydr. lowerable PRO cutting
Cutting rotor with four helically arranged rows of tines (360°)
Active bale start thanks to the rotor
14 knives, individually protected against foreign objects
Silage equipment
4 endless belts with double drive
Bale ejector, straight

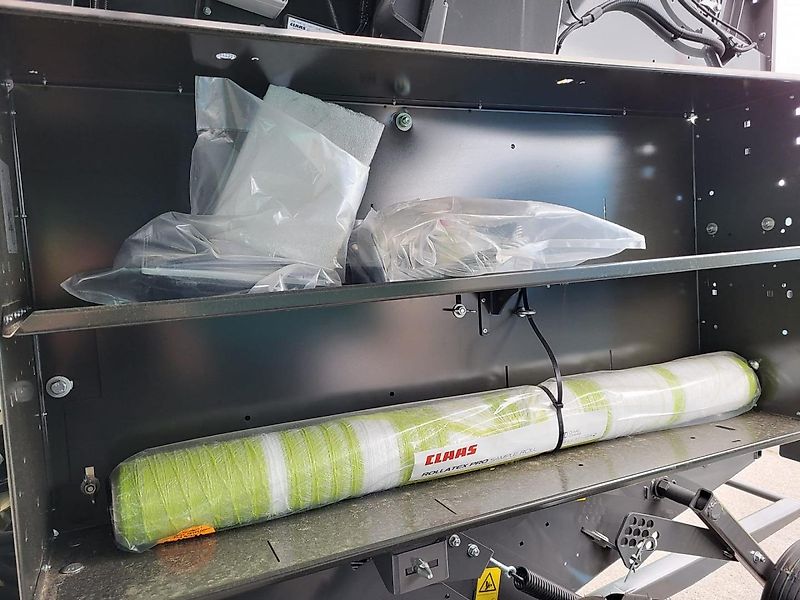

ROLLATEX XW Comfort net wrapping

Hitching:
Single wide-angle PTO drive shaft w/ cam clutch, 6-splines
5 x Tractor hydraulics connection, comfort metric
Jack, height-adjustable
Universal drawbar for bottom hitching
D40 hitch eye, MR
Input gearbox 540 rpm

Chassis and tyres:
500/50-17 tyres

Machine operation:
CEMIS 700
ISOBUS-compatible

Comfort:
Central lubrication system, manual

Additional equipment:
Statutory equipment, MR, without brake system
Technical documentation, German
Lighting
